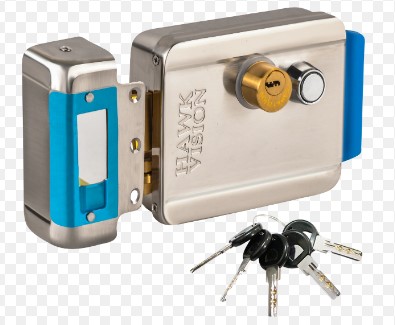

Hawk Vision HV-DL-204

The Hawk Vision HV-DL-204 is a heavy-duty electronic rim door lock engineered for heavy pedestrian traffic and secure external perimeters. It serves as a foundational component for advanced access control systems in residential apartments, commercial buildings, and manufacturing facilities.

Construction and Mechanical Design

The lock body is manufactured from premium stainless steel, providing resistance against weather elements, corrosion, and physical tampering. Its internal mechanism features a high-tensile latch and deadbolt assembly capable of enduring significant force. A key mechanical advantage is its universal latch design, which can be rotated 180 degrees during installation to accommodate both left-handed and right-handed swinging gates or doors.

Electrical and Operational Parameters

Operating within a flexible 12V to 24V DC range, the HV-DL-204 seamlessly integrates with standard security power supplies. It employs a fail-secure mechanism; in the event of a total power failure or wire cut, the lock remains securely engaged to maintain premises security. The lock can be triggered to open momentarily by receiving an electrical pulse from a remote button, intercom system, or biometric controller.

Manual Override and Security Integration

For manual entry and power outage contingencies, the unit comes equipped with a mechanical brass cylinder and five high-security computerized keys. It features dual-cylinder operation, allowing lock control from both the interior and exterior of the gate.
