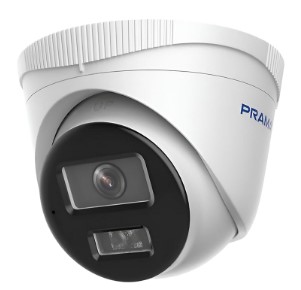

Prama 2MP Hybrid Dome with Mic is designed for reliable daily operation in homes, offices and commercial sites. It offers stable performance, durable construction and compatibility with modern CCTV infrastructure, helping create an efficient and secure surveillance network.
The model number PT-NC123D3-WNM(D2) corresponds to the Prama 2MP RanginView / Smart Dual Light Fixed Turret IP Network Camera. Prama is a well-known security brand in India closely associated with Hikvision manufacturing ecosystems.
Key Technical Specifications
· Resolution: 2 Megapixel (Full HD, 1920 × 1080) capturing up to 25/30 frames per second.
· Image Sensor: 1/2.9" Progressive Scan CMOS with a low-light color performance threshold down to 0.005 Lux.
· Lens Varieties: Usually available in a 2.8 mm focal length (wide $103^\circ$ horizontal field of view) or a 4 mm focal length (narrower $83^\circ$ field of view for target depth).
Weatherproof Protection: IP67-rated dust and water resistance, making it suitable for both indoor and rugged outdoor setups.
• Durable build
• Easy installation
• Reliable operation
• Optimized performance
• Long service life
• Quality components
Standout Features
· Smart Dual Light (Hybrid Night Vision):
Instead of relying only on traditional black-and-white Infrared (IR) night vision, this camera houses both IR LEDs and White Light LEDs with a range up to 30 meters. By default, it can run discreetly on invisible IR. When its onboard AI detects a human or vehicle, it automatically fires up the visible white light to switch the feed into crisp, full-color evidence mode.
· AI Target Classification:
The camera includes built-in edge analytics optimized to specifically isolate human and vehicle movements. This filters out environmental false alarms like moving tree branches, wind-blown trash, or passing animals.
· Built-In Audio:
Equipped with an integrated, environmental-noise-filtering microphone that captures real-time synchronized audio straight through the video stream.
· Efficient Video Compression:
Supports H.265+ encoding. When paired with a compatible NVR (Network Video Recorder), it saves up to 70–80% more bandwidth and storage space compared to older H.264 compression standards.
• Brand: Prama
• Model: PT-NC123D3-WNM(D2)
• Professional grade
• Suitable for CCTV applications
Connectivity & Integration
Because this is an IP (Network) Camera, it does not use traditional analog BNC video cables. It connects to networks using a standard RJ45 Ethernet port.
· Power Options: It features dual-mode flexibility. You can power it using a local 12V DC adapter or run it entirely over a single Ethernet cable via PoE (Power over Ethernet - 802.3af Class 3) when plugged into a PoE switch or PoE NVR.
· System Interoperability: It is ONVIF compliant (Profile S and Profile T). Even though it is a Prama device, it will register seamlessly with third-party NVR systems like Hikvision, Dahua, CP Plus, or independent VMS software.
